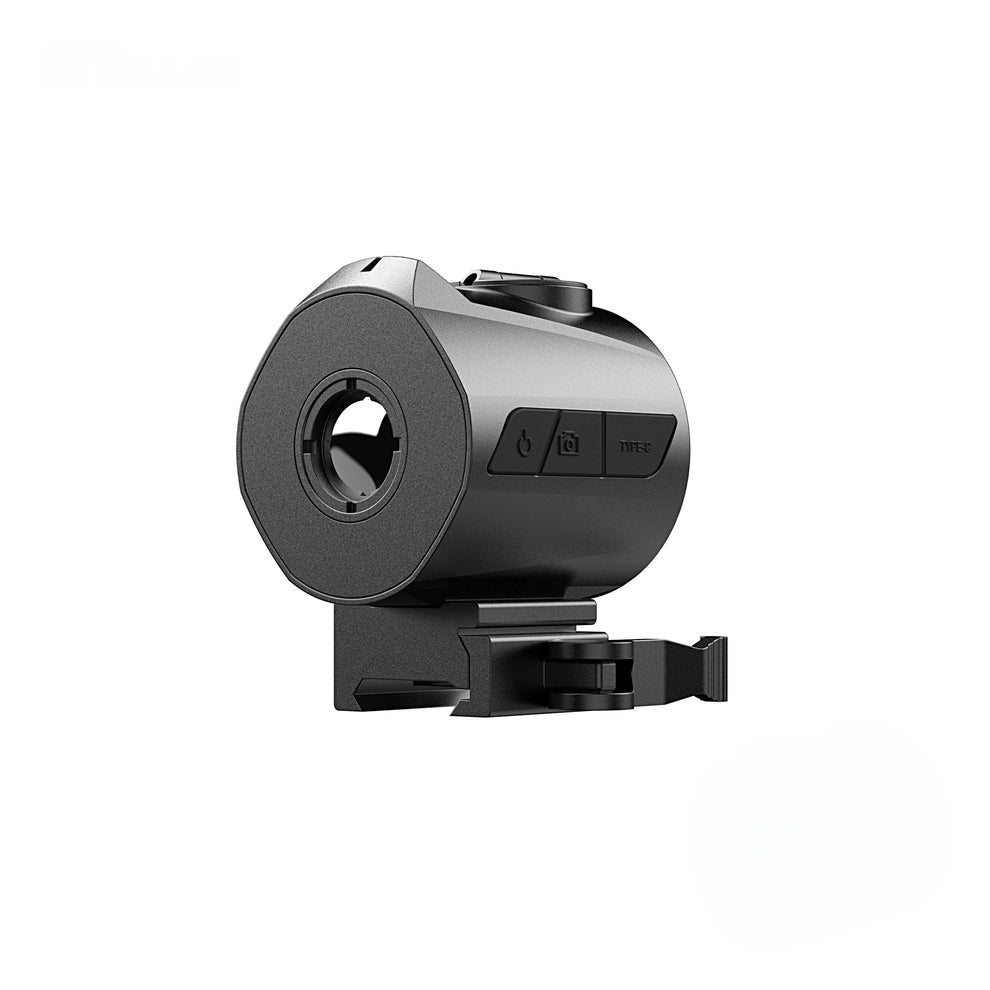

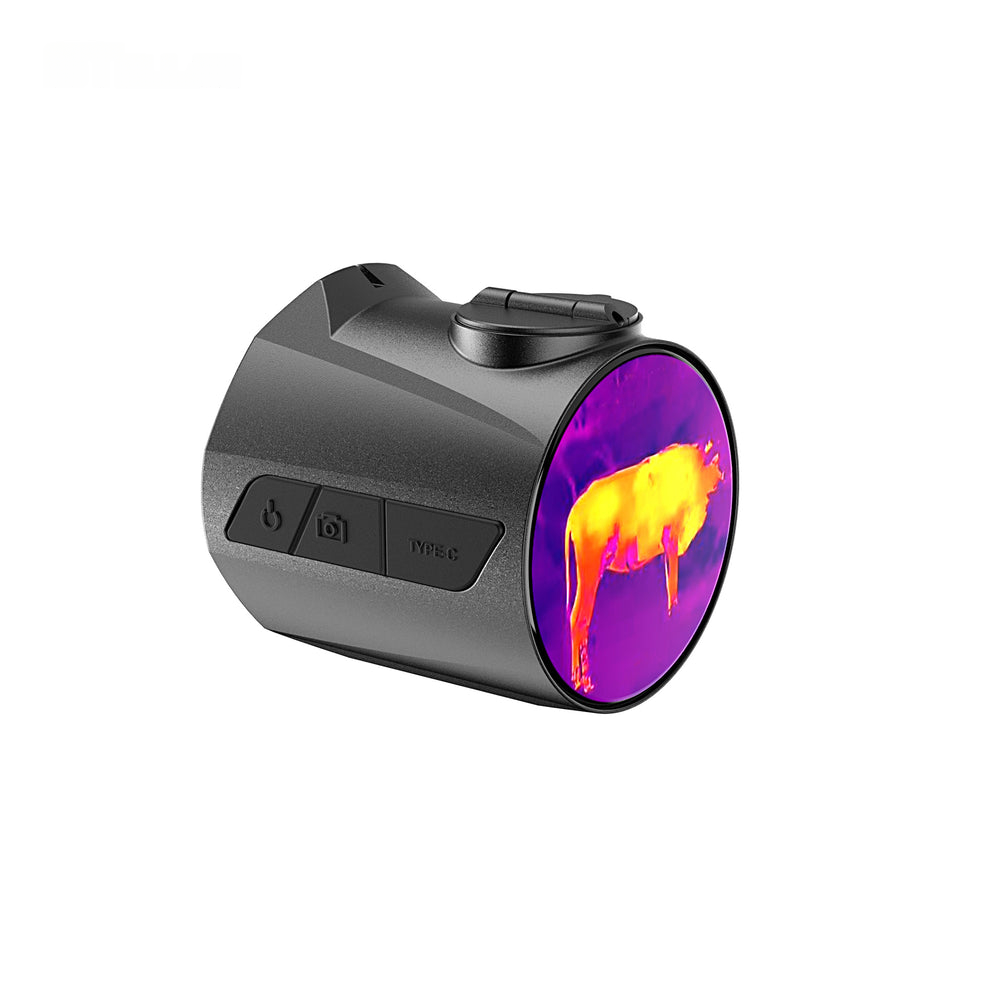

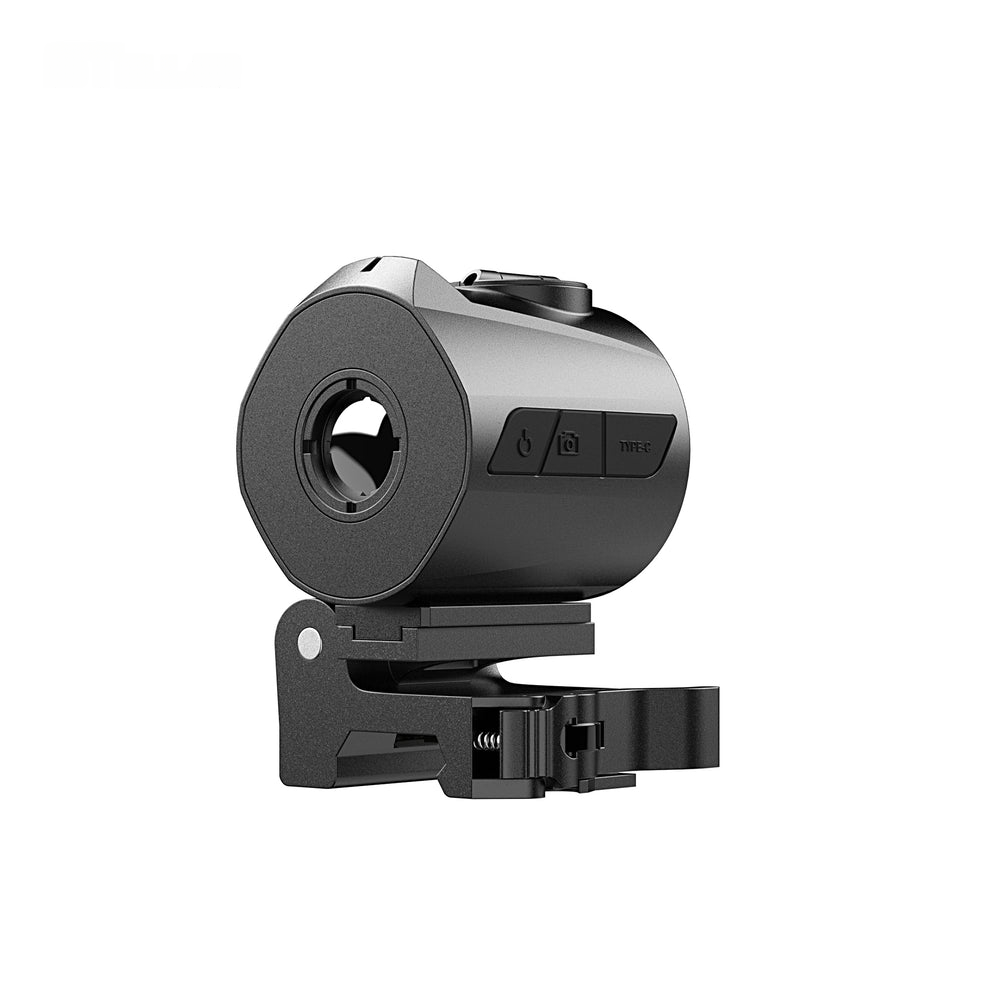

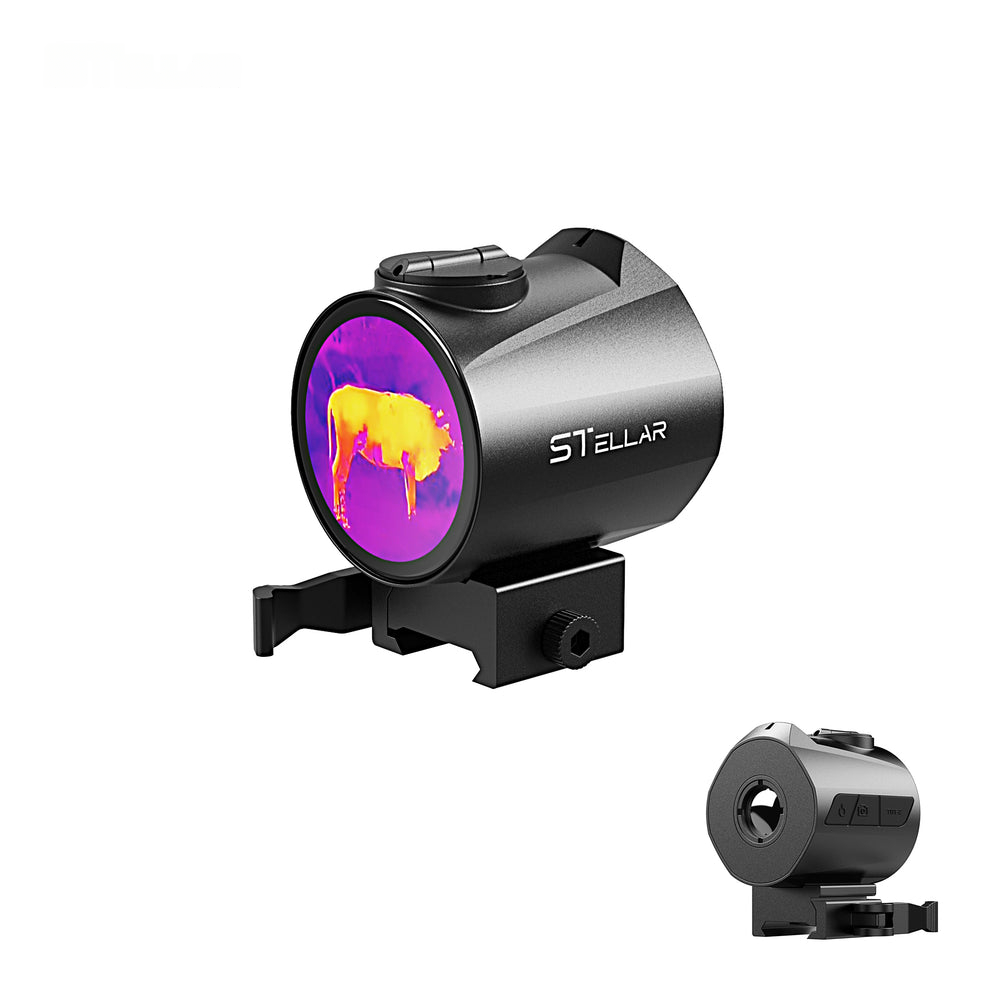

T3-MINI Compact Thermal Imaging Scope

Top Features

• Ultimate Portability with Full Touch Control: An incredibly compact 52x48x51mm body houses a responsive 1.4-inch OLED touchscreen, offering intuitive, button-free operation for all functions.
• All-in-One Integrated Design: Features a built-in display, rechargeable battery, and storage, requiring no external devices or complicated setup to start viewing thermal imagery.
• Practical Thermal Performance: Equipped with a 256x192 uncooled detector and a 13mm F0.9 lens, providing a clear thermal view with a detection range up to 700m for general observation tasks.
• Built-in Media Capture: Supports both photo capture and on-board video recording directly to internal EMMC storage, allowing documentation of findings without extra gear.
• Enhanced Viewing Utility: Includes multiple color palettes (Black/White/Red Hot, Fusion) and a cursor indicator for on-screen referencing.
  Long Battery Life : Provides ≥4 ho,urs of continuous operation,An external charger (model 14280 or 16340) is required for charging. A battery charger is provided free of charge.
• Rugged and Reliable: Tested to withstand 1000g/0.4ms impact vibration and operates in temperatures from -20°C to +50°C, ready for field use.

Specification

• Model: T3-MINI

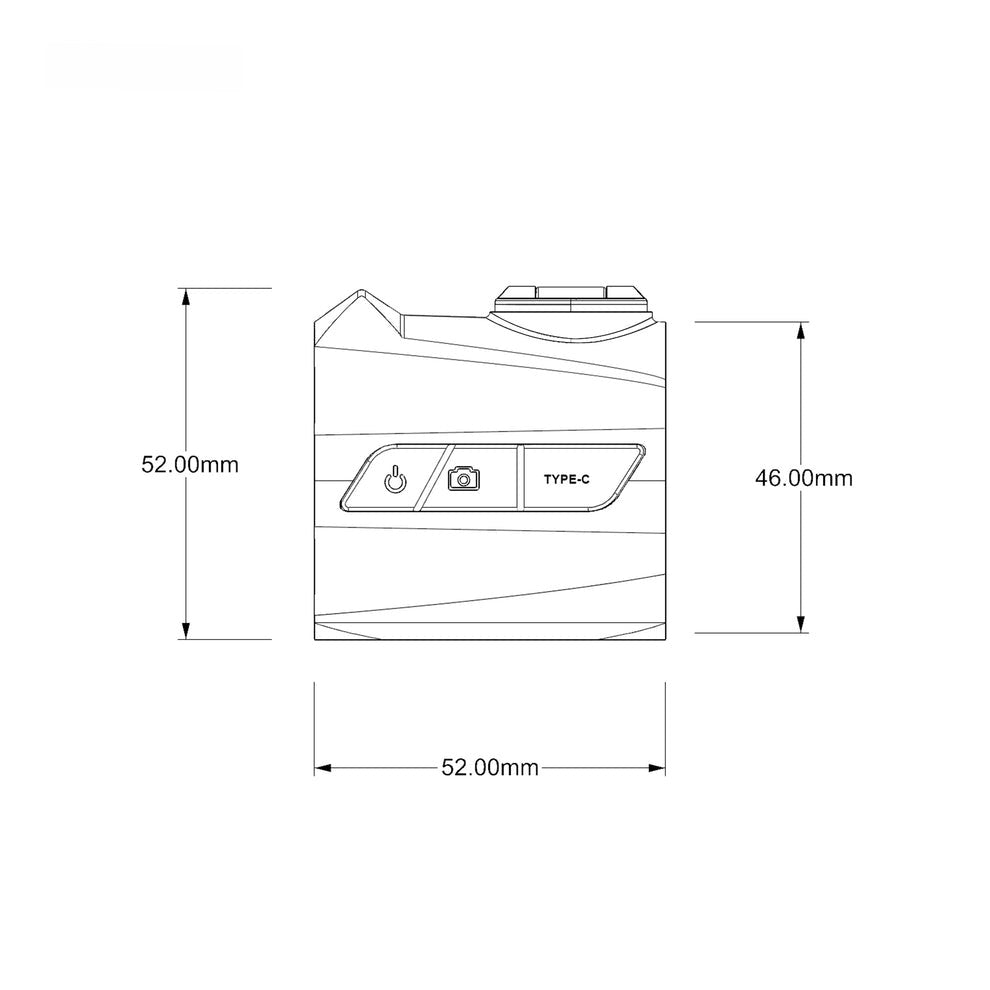

• Dimensions (L x W x H): 52 mm x 48 mm x 51 mm
• Operating Temperature: -20°C to +50°C
• Detector Type: Uncooled Focal Plane Array (FPA)
• Resolution: 256 x 192
• Frame Rate: 25 Hz
• Pixel Pitch: 12 µm
• Spectral Band: 8 µm to 14 µm
• Lens Focal Length: 13 mm, F0.9
• Field of View: 13.5° x 10.1°
• Detection Range: ≤ 700 m
• Display: 1.4-inch OLED Touchscreen, 466 x 466 resolution
• Color Palettes: Black Hot, White Hot, Red Hot, Fusion
• Features: Cursor Indicator, Adjustable Brightness
• Media Capture: Photo & On-board Video Recording
• Storage: Built-in EMMC
• Battery: Rechargeable 16340 Li-ion
• Battery Life: ≥ 4 hours (at 25°C)
• Shock Resistance: 1000g / 0.4ms
